OB Van rental - Engineer Service

16-camera OB Van, Happy Bird

Standards & format

3G+HD

1080p50, 1080i50, 720p50
Up/Down/Cross Conversion & Mixing

Camera Systems

Cameras

11x Sony HDC-1700 Fiber Optic Camera Chain
4x Panasonic AK-UC4000GSJ Camera Chain

Lenses & Tripods

2x Canon 95×8 w/extender + Sachtler 75/OB2001
2x Canon 86×8 w/extender + Cartoni CS60 Tripod
1x Canon 60×9 w/extender + Cartoni CS60 Tripod
2x Canon 40×10 w/extender + Sachtler Video20
4x Canon 22x w/extender + Sachtler Video20
4x Canon 14×4,3 w/extender + Sachtler Video20

Switching , Processing & Monitoring

Router

Snell Sirius 3G/HD/SD Router 128×128 Crosspoints

Vision mixer

SONY Multi Format Switcher SystemXVS-G1 System – 44in/24out
Compact Control PanelICP-X1224
Compact Control PanelICP-X1116
2x Sony MKS-R3210/2 SYM Switcher Aux Panel

Video Processing

6x LYNX 8ch AES Audio Embedder
4x AJA Synchronizers
4x AJA UP/Down/Cross
1x AJA FS4 – 4ch Synchronizer/ De-embedder

Video Monitoring

6x Panasonic 50” Panel
80 Channel Multiviewer System for OB areas
5 x 17″ or 20” HD/SD Monitor for Outside Locations
2 x Tektronix Measurement Waveforms

Recording, Replay System & CG

Replays & Recorders

4x EVS XT3 12ch Server with SSM option
2x 4ch Aja KiProUltra SSD Recorders
1x AJA KiPro Go 2
1x Panasonic P2 Recorder
1x USB Recorder (8x Sticks)

CG

2x VGCast CG HD/SD System

Audio & Intercom

Mixing Console

Calrec Artemis Light 5.1 System with 40 fader console:

3x Fiber External StageBox i/o

Dolby E Processing

2x DP571 Encoder
1x DP572 Decoder

Audio monitoring

Surround/Stereo Sound:

Stereo/Mono On-Board PPM for all busses
Neumann 5.1 Surround Speakers
RTW TM7 5.1 Measurement

Microphones

12x Audience or On-Camera Mics with Windscreens
2x Reporter Mics with Windscreens
Commentary Unit with 2x Sennheiser Headsets HMD26
DPA 5.1 Surround Mic

Intercom

Telex ADAM-M 72×72 Intercom Matrix:

up to 8x Outside IP Intercom Panels
12x 4Wire External Lines
3x Wireless Beltpack System

18-camera OB Van, Star Bird

Standards & format

HD

1080/50i, 720/50p

HD+SD

Up/Down/Cross Conversion & Mixing HD/SD Video

Camera Systems

Cameras

12x Sony HSC-300 Triax Camera Chain
1x Vislink Wireless Chain with Sony HXC-P70 Camera Head

Lenses & Tripods

1x Canon 86×8 w/extender + Cartoni CS60 Tripod
1x Canon 60×9 w/extender + Cartoni CS60 Tripod
2x Canon 40×10 w/extender + Cartoni CS20 Tripod
5x Canon 22x or 17x w/extender + Cartoni CS20 Tripod
4x Canon 14×4,3 w/extender + Cartoni CS20 Tripod

Switching , Processing & Monitoring

Router

Snell Sirius 3G/HD/SD Router
96×128 Crosspoints

Vision mixer

Kahuna 2,5ME HD/SD 40 Inputs/24 Outputs Switcher
3ME Control Panel & 2x Standalone Aux Panel
8 ClipStores and 4 Channels DVE onboard

HD/SD Processing

4x Snell HD/SD Synchronizers
6x Snell/Lynx 8ch AES Audio Embedders

HD/SD Monitoring

76 Channel Multiviewer System for OB areas
5 x 17″ or 20” HD/SD Monitor for Outside Locations
2 x Leader Measurement Waveforms

Recording, Replay System & CG

Replays & Recorders

2x EVS XT Nano 6ch Server
2x Panasonic P2 Recorder
1x USB Recorder (5x Sticks)
1x Cinegy 8ch CapturePro Ingest Server

CG

1x VGCast CG HD/SD System

Audio & Intercom

Mixing Console

Calrec Artemis Light with 40 fader console:

2x Fiber StageBox 24input/8out
Full redundancy

Dolby E Processing

1x DP571 Encoder
1x DP572 Decoder

Audio monitoring

Surround/Stereo Sound:

Stereo/Mono On-Board PPM for all busses
ADAM 5.1 Surround Speakers
RTW TM7 5.1 Measurement

Microphones

12x Audience or On-Camera Mics with Windscreens
2x Reporter Mics with Windscreens

Intercom

RTS ODIN – 48 ports Intercom Matrix:

up to 4x Outside Intercom IP Panels
10x 4Wire External Lines
10x 4Wire External Lines

12-camera OB Van, SunnyBird

Standards & format

HD

1080/50i, 720/50p

HD+SD

Up/Down/Cross Conversion & Mixing HD/SD Video

Camera Systems

Cameras

12x Sony HSC-300 HD Triax Chains

Lenses

3x Canon 22×7.6 w/extender
2x Canon 60×9 w/extender
3x Canon 40×10 w/extender
3x Canon 14×4.3 w/extender
1x Fujinon ZA12x4.5

Switching , Processing & Monitoring

Router – Digital Video

Snell 3G/HD/SD Router
128×128 Crosspoints

Main mixer HD/SD

Kahuna 2ME HD/SD 40 Inputs/24 Outputs Switcher
2ME Control Panel & 2x Standalone Aux Panel
4 DSK per ME, 8 ClipStores 4ch DVE On-board
KULA 2ME 36 Inputs/18 Outputs Switcher
2x Control Panel 16 Crosspoint

Video Processing

4x Snell 8ch AES Audio Embedder
2x Snell De-Embedder
4x Lynx HD-SDI Synchronizer
2x AJA FS1 Converter

Video Monitoring

8 x Panasonic 42” Panel
66 Channel Multiviewer System for OB areas
4 x 17” Panasonic LCD Monitor for Field Monitoring
1 x Phabrix HD/SD Waveform Monitors for Camera Engineer

Recording, Replay System & CG

Replays & Recorders

2x 4ch SlomoTV Videoserver
2x 3ch SlomoTV Videoserver
1x LGZ USB HD Recorder (5x Sticks)
12ch Aja KiPro SSD Recorders

CGs

1x VGCast CG HD/SD System

Audio & Intercom

Mixing Console

Calrec Artemis Light 48 fader console:

Calrec Artemis Light 48 fader console
On-board Metering

Audio monitoring

Stereo Sound:

3x Neumann Monitors
Beyerdynamic Pro Headphones
RTW 5.1 Meter

Microphones

Sennheiser ME67, ME66 audience mics
Sony on-camera mic

Intercom

RTS ODIN 64 x 64 Intercom Matrix:

6x Outside Intercom Panels
1x RTS SIP ISDN Unit
1x GSM Gate
1x Commentary Unit with 2x Headsets
Wireless Beltpack System RTS ROAMEO

4-camera OB Van, BabyBird

Standards & format

HD

1080/50i, 720/50p

HD+SD

Up/Down/Cross Conversion & Mixing HD/SD Video

Camera Systems

Cameras

8x Sony HSC-300 HD Triax Chains

Lenses

By request

Switching , Processing & Monitoring

Router

AJA KUMO Compact 3G-SDI Router
32X32 Crosspoints

Vision mixer

Panasonic multi-format switcher AV-UHS500 12-IN/ 9-OUT build-in Multiwiever

Video Processing

2 x AJA OG-DANTE-12GAM

Video Monitoring

3 x LG OLED48C14LB
4 x IIYAMA PROLITE XUB2792UHSU

Recording, Replay System & CG

Replays & Recorders

By request

CG

1x VGCast CG HD/SD System

Audio & Intercom

Mixing Console

1x ALLEN & HEATH SQ-6
1x AR2412 StageBox

Audio monitoring

2x Yamaha MSP3A

Microphones

By request

Intercom

RTS ODIN 16×16 Intercom Matrix:

3x KP-4016 Panels
wireless Beltpack System RTS ROAMEO
dual camera intercom

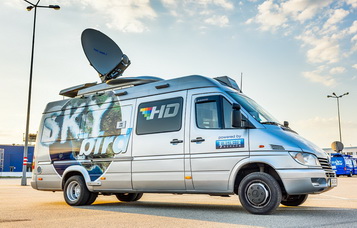

4-camera Satellite OB Van, SkyBird

Antenna & transmitter

Antenna

Swe-dish 150 KM Drive Away 1.5 м

Controller

RC 3000

Transmitter

2 x Xicom XTD-400K 400W

Processing & distribution

Encoders

2 x ATEME Kyrion CM 5000, HD, MPEG4, 4:2:2,BISS, DVB-S2/DVB-S

Modulator

2 x ATEME Kyrion CM 5000, HD, MPEG4, 4:2:2,BISS, DVB-S2/DVB-S

IRD

2 x ATEME Kyrion dr 5000, DVB-S2, HD, MPEG4, BISS
1 x ERICSSON RX8200, DVB-S2, HD, MPEG4, BISS

Audio processing

Main mixer

ALLEN&HEATH WZ14:4:2

Wired microphones

Shure or Sennheiser by request

Wireless microphones

Lectrosonics or Sennheiser by request

IFB

Lectrosonics or Sennheiser by request

Video processing

Router

Harris 16×16 HD/SD

Distributor

Apantac HD/SD Modules

Embedders & De-embedders

2x AJA FS1

Video mixer

Switcher FOR-A HS300 with MVW board

Monitors & Multiviewer

3x BON HD/SD 18″
4x BON HD/SD 5″

Recorders (option)

up to 2x Panasonic P2 Card Recorder
1x Sony XDCAM Recorder

Camera systems

up to 4x Sony Triax Camera Chains

HDTV

HSC-100 or HSC-300

SDTV

BVP-E10WSP or BVP-E30WSP

Viewfinder

2″ or 5″ by request

Lens

Canon/Fujinon HD/SD by request

Camera supports

Sachtler/Vinten tripods by request

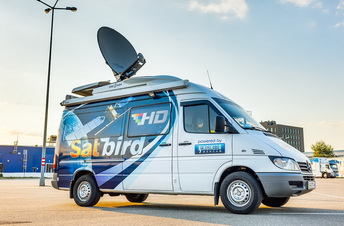

Satellite OB Van, SatBird

Antenna & transmitter

Antenna

Swe-dish 150 KM Drive Away 1.5 м

Controller

RC 3000

Power Amplifier

2 x Xicom XTD-400K, 400 W

Controller HPA

XTC-114D

Processing & distribution

Encoders

1 x Harmonics Ellipse-2000, HD, MPEG-4, 4:2:0, BISS, DVB-S2/DVB-S
2 x ATEME Kyrion CM5000, HD, Mpeg4, 4:2:2, BISS, DVB-S2/DVB-S

Modulator

2 x ATEME Kyrion CM 5000, HD, MPEG4, 4:2:2,BISS, DVB-S2/DVB-S

IRD

1x ATEME DR5000-HD-422 , HD, DVB-S2/DVB-S, MPEG-2/MPEG-4, BISS
1 x ERICSSON RX8200, DVB-S2, HD, MPEG4, BISS

Audio processing

Audio mixer

ALLEN&HEATH WZ14:4:2

Wired microphones

Shure or Sennheiser by request

Wireless microphones

Lectrosonics or Sennheiser by request

IFB

Lectrosonics or Sennheiser by request

Hybrid

Telex TF-2000

Video processing

Router

Miranda 16×16 HD/SD

Distributor

AJA HD/SD Modules

Embedders & De-embedders

2x AJA HD10AMA

Monitors & Multiviewer

2x BON HD/SD 18 inches; 1x Marshall Quad Monitor

Recorders (option)

up to 2x Panasonic P2 Card Recorder
1x Sony XDCAM Recorder

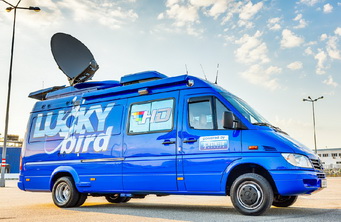

5-camera Satellite OB Van, LuckyBird

Antenna & transmitter

Antenna

Swe-dish 150 KM Drive Away 1.5 м

Controller

RC 3000

Transmitter

2 x Xicom XT-400K 400W

Processing & distribution

Encoders

2 x ATEME Kyrion CM 5000, HD, MPEG4, 4:2:2,BISS, DVB-S2/DVB-S

Modulator

2 x ATEME Kyrion CM 5000, HD, MPEG4, 4:2:2,BISS, DVB-S2/DVB-S

IRD

1 x TANDBERG TT1260, DVB-S, SD, MPEG2, BISS
1 x ATEME Kyrion dr 5000, DVB-S2, HD, MPEG4, BISS
1 x ERICSSON RX8200, DVB-S2, HD, MPEG4, BISS

Audio processing

Main mixer

Yamaha LS9-16 Digital Mixer with 16in/8out Fiber Stagebox

Wired microphones

Shure or Sennheiser by request

Wireless microphones

Lectrosonics or Sennheiser by request

IFB

Lectrosonics or Sennheiser by request

Video processing

Router

Harris 16×16 HD/SD

Distributor

Harris FR6800 HD/SD Modules

Embedders & De-embedders

2x Harris FR6800 HD/SD Modules
1x AJA FS1

Video mixer

Switcher Panasonic AV-HS410E with MVW board

Monitors & Multiviewer

Sony Bravia FWD-32EX650
Panasonic BT-LH1710

Recorders (option)

up to 2x Panasonic P2 Card Recorder
1x Sony XDCAM Recorder

Camera systems

up to 5x Sony Triax Camera Chains

HDTV

HSC-100 or HSC-300

SDTV

BVP-E10WSP or BVP-E30WSP

Viewfinder

2″ or 5″ by request

Lens

Canon/Fujinon HD/SD by request

Camera supports

Sachtler/Vinten tripods by request
